日志监控ELK Stack
http://192.168.0.123:5601/
-
按类型入库可搜索 [program] == 'xxxxxxx'
-
logstash 使用的默认514端口收集日志
vi docker-compose-elk.yml
# elasticsearch数据存储 kibana数据可视化 logstash数据收集
version: '3'
services:
elasticsearch:
image: docker.elastic.co/elasticsearch/elasticsearch:7.10.0
ports:
- "9200:9200"
environment:
- discovery.type=single-node
logstash:
image: docker.elastic.co/logstash/logstash:7.10.0
ports:
- "9601:9601"
- "5044:5044"
- "514:514/udp"
- "9999:9999/udp"
- "9991:9991/udp"
- "9996:9996/udp"
- "6343:6343/udp"
- "2055:2055/udp"
kibana:
image: docker.elastic.co/kibana/kibana:7.10.0
ports:
- "5601:5601"
docker compose -f ./docker-compose-elk.yml up -d
改时区（发送端）
rm -f /etc/localtime
ln -s /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
date -R
vi /usr/share/elasticsearch/config/elasticsearch.yml #elasticsearch配置文件
vi /usr/share/kibana/config/kibana.yml #kibana配置文件 #i18n.locale: "zh-CN"
在接受日志配置
vi /usr/share/logstash/pipeline/logstash.conf # logstash配置文件
默认配置
input {
beats {
port => 5044
}
}
output {
stdout { codec => rubydebug}
}
测试配置
vi /tmp/test-pipeline.conf
input {
syslog{
tags => "test"
port => 514
}
}
output {
stdout { codec => rubydebug}
}
logstash -f /tmp/syslog-pipeline.conf --path.data=/tmp/logstash
简易配置
input {
syslog{
port => 514
}
}
output {
elasticsearch {
hosts => ["elasticsearch:9200"]
index => "system-syslog-%{+YYYY-MM-dd}"
}
}
在elasticsearch的管理->索引管理就会收到来之logstash日志
基于判断配置
output {
if [host] == "192.168.0.2"{
elasticsearch {
hosts => ["elasticsearch:9200"]
index => "huawei_tplv3_%{+YYYY_MM_dd}"
}
}
if [host] == "192.168.0.121" and [logsource] == "vm" {
elasticsearch {
hosts => ["elasticsearch:9200"]
index => "linux_tplv3_%{+YYYY_MM_dd}"
}
}
if [host] == "192.168.0.121" and [program] in ["web_access_log","web_error_log"] {
elasticsearch {
hosts => ["elasticsearch:9200"]
index => "web_tplv3_%{+YYYY_MM_dd}"
}
}
}
过滤转换
（可在kibana开发工具中调试转换规则）
nginx 过滤规则
filter {
if [host] == "192.168.0.121" and [program] in ["web_access_log","web_error_log"] {
grok{
match => {"message" => "%{IPV4:remote_addr} - (%{USERNAME:user}|-) \[%{HTTPDATE:log_timestamp}\] \"(%{WORD:request_method}|-) (%{URIPATH:uri}|-) HTTP/%{NUMBER:httpversion}\" %{NUMBER:http_status} (?:%{BASE10NUM:body_bytes_sent}|-) \"(?:%{GREEDYDATA:http_referrer}|-)\" \"(%{GREEDYDATA:user_agent}|-)\""}
}
geoip {
source => "remote_addr"
target => "geoip"
add_field => [ "country_name", "%{[geoip][country_name]}" ]
add_field => [ "city_name", "%{[geoip][city_name]}" ]
add_field => [ "country_name", "%{[geoip][country_code3][0]}" ]
database => "/usr/share/logstash/vendor/bundle/jruby/2.5.0/gems/logstash-filter-geoip-6.0.3-java/vendor/GeoLite2-City.mmdb"
}
date {
match => ["log_timestamp", "dd/MMM/yyyy:HH:mm:ss Z"]
target => "@timestamp"
}
useragent {
target => "agent"
source => "user_agent"
}
mutate{
remove_field => ["logsource"]
remove_field => ["tags"]
remove_field => ["severity"]
remove_field => ["facility_label"]
remove_field => ["facility"]
remove_field => ["@version"]
remove_field => ["timestamp"]
convert => ["[geoip][city_name]", "string"]
convert => ["[geoip][country_name]", "string"]
}
}
}
date {
match => [ "timestamp", "MMM d HH:mm", "MMM DD HH:mm", "ISO8601"]
target => "timestamp"
}
ip解析库
/usr/share/logstash/vendor/bundle/jruby/2.5.0/gems/logstash-filter-geoip-6.0.3-java/vendor/GeoLite2-City.mmdb
/usr/share/logstash/vendor/bundle/jruby/2.5.0/gems/logstash-filter-geoip-6.0.3-java/vendor/GeoLite2-ASN.mmdb
抓包验证数据
监听查看
sudo netstat -anlup|grep 514
发送日志
logger -n 192.168.0.123 asdfasdasfasdfsad
抓包验证
tcpdump -v -nn -i enp1s0 port 514 and udp
Jan 23 2008 13:27:53 3700 %%01SHELL/6/DISPLAY_CMDRECORD(l)[21]:Record command information. (Task=VT0 , Ip=192.168.20.199, User=admin, Command="d| include info-center")
解析后的数据
1 2024-03-27T08:09:42.417757+08:00 vm jack - - [timeQuality tzKnown="1" isSynced="1" syncAccuracy="223000"] asdfasdasfasdfsad
{
"priority" => 0,
"@version" => "1",
"host" => "192.168.0.121",
"tags" => [
[0] "123",
[1] "_grokparsefailure_sysloginput"
],
"facility_label" => "kernel",
"facility" => 0,
"severity_label" => "Emergency",
"@timestamp" => 2024-03-27T02:05:50.078Z,
"severity" => 0,
"message" => "<13>1 2024-03-27T10:05:50.040097+08:00 vm jack - - [timeQuality tzKnown=\"1\" isSynced=\"1\" syncAccuracy=\"634500\"] asdfasdasfasdfsad"
}
日志外发
Nginx日志接入
log_format combined '$remote_addr - $remote_user [$time_local] $http_host $request_method "$uri" "$query_string" '
'$status $body_bytes_sent "$http_referer" $upstream_status $upstream_addr $request_time $upstream_response_time '
'"$http_user_agent" "$http_x_forwarded_for"' ;
access_log syslog:server=192.168.0.123:514,facility=local7,tag=web_access_log,severity=info;
error_log syslog:server=192.168.0.123:514,facility=local7,tag=web_error_log,severity=info;
识别设备标签 facility_label 通过这个判断 或 识别标签program
{
"@timestamp" => 2024-03-27T03:12:58.000Z,
"timestamp" => "Mar 27 03:12:58",
"type" => "system-syslog",
"priority" => 190,
"facility_label" => "local7",
"logsource" => "c33462a7dc5e",
"host" => "192.168.0.121",
"@version" => "1",
"program" => "nginx_access_log",
"severity_label" => "Informational",
"facility" => 23,
"message" => "123.6.49.18 - - [27/Mar/2024:03:12:58 +0000] \"GET /K3Cloud/html5/script/thirdpart/kendo/messages/kendo.messages.zh-CN.min.js?ver=8.1.410.13 HTTP/1.1\" 200 14710 \"http://oa.ouqiyj.com:8099/K3Cloud\" \"Mozilla/5.0 (Linux; Android 8.0; Pixel 2 Build/OPD3.170816.012) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/87.0.4280.88 Mobile Safari/537.36\"",
"severity" => 6
}
linux日志外发
vi /etc/rsyslog.conf
*.notice @192.168.0.123:514
sudo systemctl restart rsyslog
{
"facility" => 3,
"facility_label" => "system",
"pid" => "973401",
"timestamp" => "Mar 27 15:02:31",
"program" => "snmpd",
"@timestamp" => 2024-03-27T15:02:31.000Z,
"priority" => 30,
"@version" => "1",
"type" => "system-syslogaaa",
"severity" => 6,
"severity_label" => "Informational",
"message" => "Cannot statfs /run/user/129/gvfs: Permission denied",
"host" => "192.168.0.121",
"logsource" => "vm"
}
docker 日志外发
--log-driver syslog --log-opt syslog-address=udp://127.0.0.1:514
docker run -itd -p 80:80 --name nginx --log-driver syslog --log-opt syslog-address=udp://127.0.0.1:514 nginx

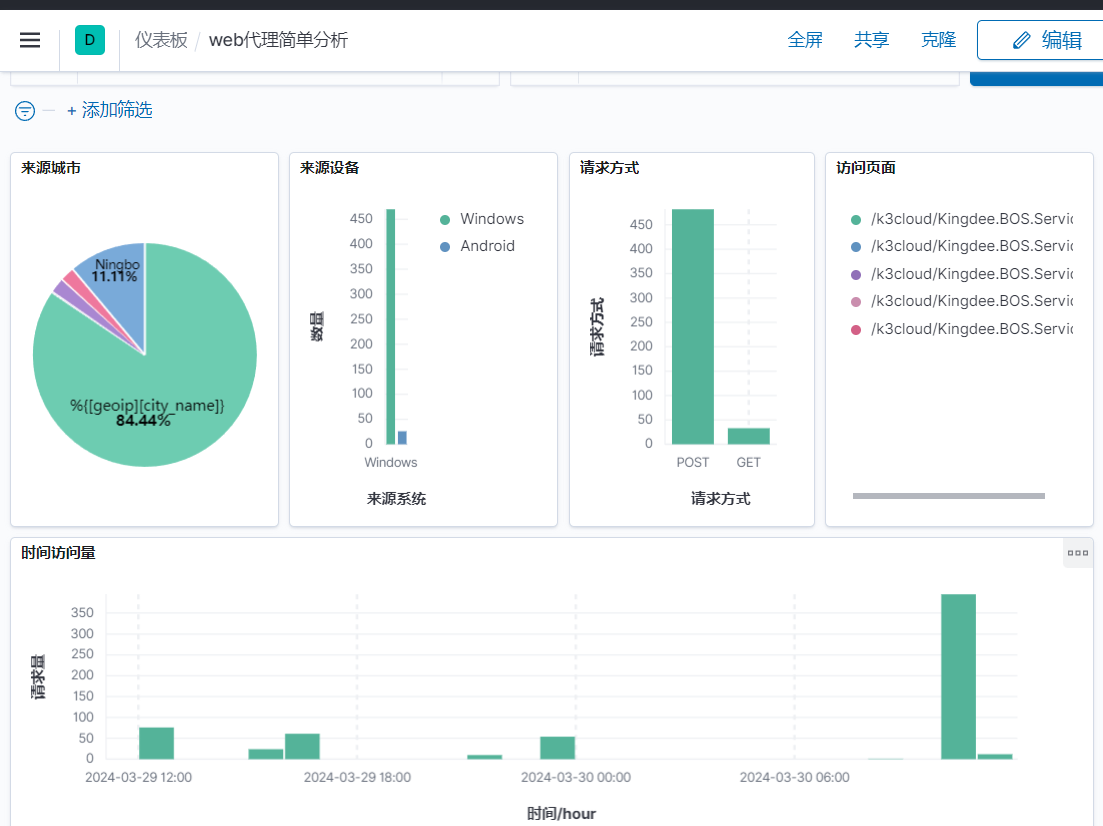

开发工具
KQL 特有的elasticsearch查询语法
标准查询
GET /linux_syslog_2024_03_29/_search
{
"query": {
"match_all": {}
},
"size": 2
}
条件查询
GET /linux_syslog_2024*/_search
{
"query": {
"term" : {
"facility_label.keyword" : {"value" : "user-level"}
}
},
"size":2
}
sql查询
POST /_sql/translate
{
"query": " SELECT * FROM linux_syslog_2024_03_29 where facility_label='user-level' and severity_label='Warning' LIMIT 2 "
}
"includes" : [
"@version",
"facility",
"facility_label",
"host",
"logsource",
"message",
"pid",
"priority",
"program",
"severity",
"severity_label",
"timestamp"
],
sql查询数据
只支持简单sql要复制查询需要json
{
"query": " SELECT host,logsource,message FROM linux_syslog_2024_03_29 LIMIT 2 "
}
POST /_sql?format=txt
{
"query": " SELECT \"@timestamp\",host,severity_label,pid,message FROM linux_syslog_2024_03_29 LIMIT 2 "
}
POST /_sql?format=txt
{
"query": "SELECT state,COUNT(*),MAX(age),AVG(balance) FROM account GROUP BY state LIMIT 10"
}
备份配置
docker cp elk-logstash-1:/usr/share/logstash/pipeline/logstash.conf /opt/elk/logstash.conf
docker cp elk-logstash-1:/tmp/test-pipeline.conf /opt/elk/test-pipeline.conf
修改docker配置
docker port elk-logstash-1
docker inspect elk-logstash-1
docker inspect elk-logstash-1|grep Id
cd /var/lib/docker/containers
vi hostconfig.json
vi config.v2.json
sflow分析
logstash接收
安装sflow插件
logstash-plugin install logstash-codec-sflow
logstash-plugin install logstash-codec-netflow
接收配置
input {
udp {
port => 2055
tags => "netflow2055"
codec => netflow
}
udp {
port => 9999
tags => "sflow9999"
codec => sflow {
# 可选的编解码器配置参数
}
}
}
输出配置
output {
if "sflow9999" in [tags] {
elasticsearch {
hosts => ["elasticsearch:9200"]
index => "sflow9999_%{+YYYY_MM_dd}"
}
}
if "netflow2055" in [tags] {
elasticsearch {
hosts => ["elasticsearch:9200"]
index => "netflow2055_%{+YYYY_MM_dd}"
}
}
stdout { codec => rubydebug}
}
netflow/sflow测试配置
vi /tmp/test-sflow.conf
logstash -f /tmp/test-sflow.conf --path.data=/tmp/logstash
发送端
sudo softflowd -i eno1 -v 5 -n 192.168.0.123:2055 -D
netflow v9 支持组播广播
sudo softflowd -i eno1 -v 9 -n 192.168.0.123:2055 -L 64 -D
网络分析
抓包离线分析
tcpdump -i enp1s0 -w /home/jack/t10000.cap -c 10000
网段
tcpdump -i br-lan -w /root/t224-8.cap -c 100 'net 224.0.0.0/8'
tcpdump -i br-lan -w /root/multicast-8.cap -c 100 ip multicast
广播
tcpdump -i enp1s0 -w /home/jack/tbroadcast.pak -c 100 broadcast
综合
tcpdump -i br-lan -w /root/mball-8.cap -c 5000 'ip multicast or broadcast '
分析工具

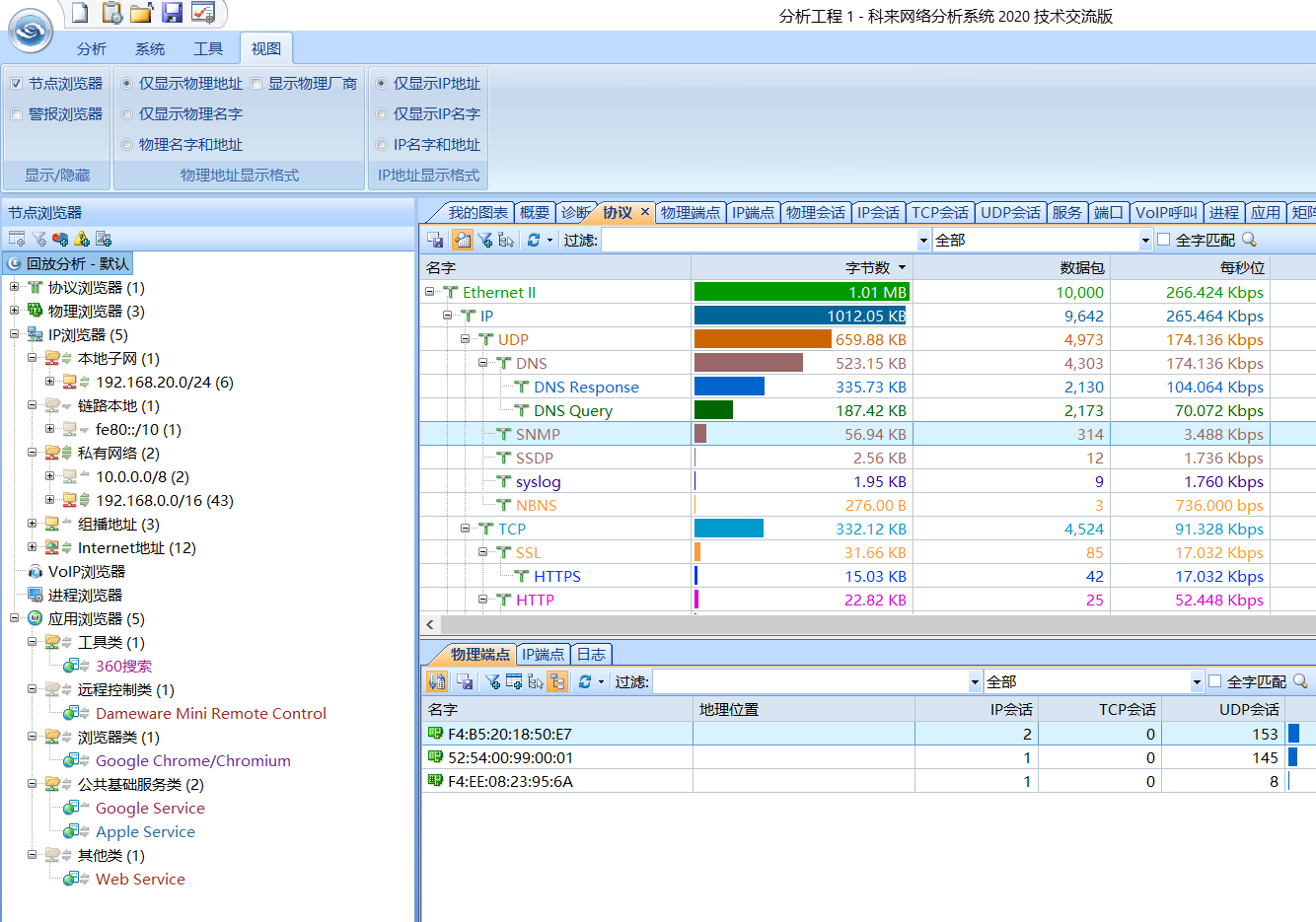

导入科来离线分析
db数据分析
docker run -d -p 12345:3000 --name metabase metabase/metabase-enterprise
