运行监控

访问地址 http://192.168.0.123:84/

默认账号：Admin 默认密码为：zabbix

修改语言

用户设置--配置--用户--语言

添加顺序

配置.主机组 -》配置.主机-》主机.监控项-》监测.最新数据

snmp测试

snmpwalk -c public -v 2c   localhost  sysDescr
snmpwalk -c public -v 2c   localhost  1.3.6.1.2.1.1.1
snmpwalk -c public -v 2c   localhost    sysName.0
snmpwalk -c public -v 2c  localhost system

agent测试


zabbix_get -s 192.168.11.189 -p 10050 -k "system.hostname"
zabbix_get -s 192.168.11.189 -p 10050 -k "system.cpu.load"

如果没有此命令就需要手动安装

客户端无法连接 Check access restrictions in Zabbix agent configuration,

原因客户端配置文件/etc/zabbix/zabbix_agentd.conf中允许访问的列表不包含执行命令的服务器

Server=0.0.0.0/0

扩展zabbiz的安装源

  1. 定制下载建议

https://www.zabbix.com/download?zabbix=6.0&os_distribution=ubuntu&os_versi

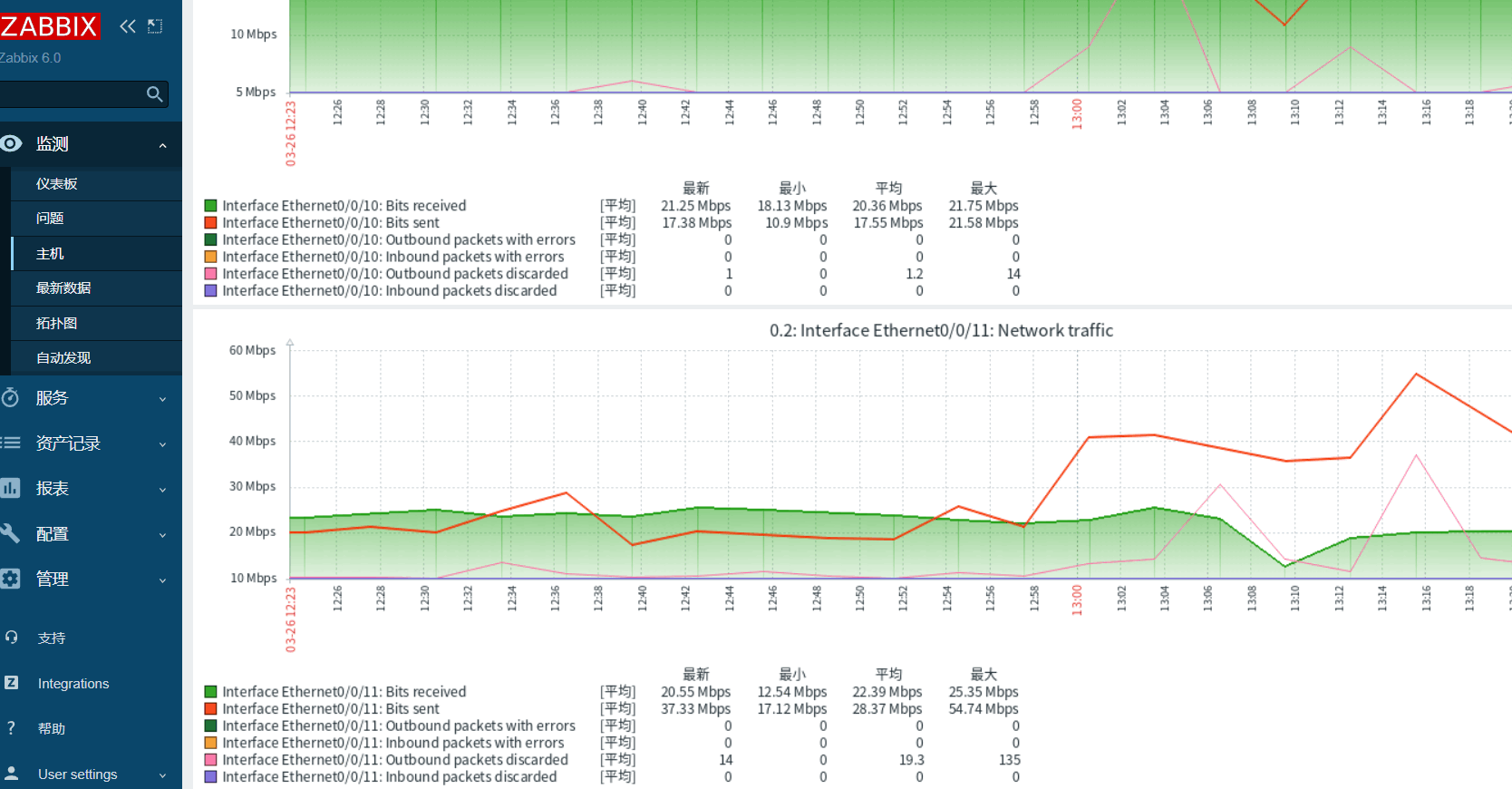

snmp收集数据

华为snmp oid数据

arp表oid (但是端口不准) 真实端口要从Oid: 1.3.6.1.2.1.2.2.1.2 获取

1.3.6.1.2.1.4.22.1

锐捷snmp oid数据

更新不及时 ？？？？

mac表oid (但是端口不准)

1.3.6.1.2.1.17.4.3.1.1

容器部署zabbix

 vi docker-compose.yml

最新版6.4

version: '3'
services:
  zabbix-server:
    image: zabbix/zabbix-server-mysql:alpine-6.4-latest
    ports:
      - 10051:10051
    environment:
      - DB_SERVER_HOST=mysql-server
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=zabbix
      - MYSQL_DATABASE=zabbix
    depends_on:
      - mysql-server
    networks:
      - zabbix-network

  zabbix-web:
    image: zabbix/zabbix-web-nginx-mysql:alpine-6.4-latest
    ports:
      - 84:8080
    environment:
      - DB_SERVER_HOST=mysql-server
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=zabbix
      - MYSQL_DATABASE=zabbix
      - ZBX_SERVER_HOST=zabbix-server
    depends_on:
      - zabbix-server
    networks:
      - zabbix-network

  mysql-server:
    image: mysql:latest
    ports:
      - 3306:3306
    environment:
      - MYSQL_ROOT_PASSWORD=root
      - MYSQL_DATABASE=zabbix
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=zabbix
    volumes:
      - mysql-data:/var/lib/mysql
    networks:
      - zabbix-network

networks:
  zabbix-network:

volumes:
  mysql-data:

稳定版

version: '3'
services:
  mysql:
    image: mysql:8.0
    container_name: mysql
    restart: always
    privileged: true
    environment:
      - MYSQL_ROOT_PASSWORD=myrootpass
      - MYSQL_DATABASE=zabbix
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=mypass
      - TZ=Asia/Shanghai
      - LANG=en_US.UTF-8
    expose:
      - "3306"
    networks:
      zabbix-net:
    command: --character-set-server=utf8 --collation-server=utf8_bin
  zabbix-gateway:
    image: zabbix/zabbix-java-gateway:6.0-centos-latest
    container_name: zabbix-gateway
    volumes:
      - /etc/localtime:/etc/localtime
    restart: always
    privileged: true
    ports:
      - "10052:10052"
    networks:
      zabbix-net:
  zabbix-snmptraps:
    image: zabbix/zabbix-snmptraps:6.0-centos-latest
    container_name: zabbix-snmptraps
    restart: always
    privileged: true
    ports:
      - "1162:1162/udp"
    networks:
      zabbix-net:
  zabbix-server:
    image: zabbix/zabbix-server-mysql:6.0-centos-latest
    container_name: zabbix-server
    restart: always
    privileged: true
    environment:
      - ZBX_LISTENPORT=10051
      - DB_SERVER_HOST=mysql
      - DB_SERVER_PORT=3306
      - MYSQL_DATABASE=zabbix
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=mypass
      - MYSQL_ROOT_PASSWORD=myrootpass
      - ZBX_CACHESIZE=1G
      - ZBX_HISTORYCACHESIZE=512M
      - ZBX_HISTORYINDEXCACHESIZE=16M
      - ZBX_TRENDCACHESIZE=256M
      - ZBX_VALUECACHESIZE=256M
      - ZBX_STARTPINGERS=64
      - ZBX_IPMIPOLLERS=1
      - ZBX_ENABLE_SNMP_TRAPS=true
      - ZBX_STARTTRAPPERS=1
      - ZBX_JAVAGATEWAY_ENABLE=true
      - ZBX_JAVAGATEWAY=zabbix-gateway
      - ZBX_STARTJAVAPOLLERS=1
    ports:
      - "10051:10051"
    networks:
      zabbix-net:
    links:
      - mysql
      - zabbix-gateway
  zabbix-web:
    image: zabbix/zabbix-web-nginx-mysql:6.0-centos-latest
    container_name: zabbix-web
    volumes:
      - /usr/share/fonts/truetype/simfang.ttf:/usr/share/zabbix/assets/fonts/DejaVuSans.ttf
      - /etc/localtime:/etc/localtime
    restart: always
    privileged: true
    environment:
      - ZBX_SERVER_NAME=Zabbix 6.0
      - ZBX_SERVER_HOST=zabbix-server
      - ZBX_SERVER_PORT=10051
      - DB_SERVER_HOST=mysql
      - DB_SERVER_PORT=3306
      - MYSQL_DATABASE=zabbix
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=mypass
      - MYSQL_ROOT_PASSWORD=myrootpass
      - PHP_TZ=Asia/Shanghai
    ports:
      - "84:8080"
    networks:
      zabbix-net:
    links:
      - mysql
      - zabbix-server
networks:
  zabbix-net:
    driver: bridge
    ipam:
      config:
        - subnet: 10.10.10.0/24
          gateway: 10.10.10.1



docker-compose -d up
docker compose  -f ./docker-compose6.0.yml  up -d

远程下载

docker pull  zabbix/zabbix-server-mysql:6.0-centos-latest
docker pull  zabbix/zabbix-web-nginx-mysql:6.0-centos-latest
docker pull zabbix/zabbix-snmptraps:6.0-centos-latest
docker pull zabbix/zabbix-java-gateway:6.0-centos-latest

docker save -o ~/zabbix-java-gateway.tar zabbix/zabbix-java-gateway:6.0-centos-latest
docker save -o ~/zabbix-snmptraps.tar  zabbix/zabbix-snmptraps:6.0-centos-latest
docker save -o ~/zabbix-web-nginx-mysql.tar  zabbix/zabbix-web-nginx-mysql
docker save -o ~/zabbix-server-mysql.tar zabbix/zabbix-server-mysql:6.0-centos-latest

客户开启snmp

linux 开启

配置文件

 vi /etc/snmp/snmpd.conf

内容

view   systemonly  included  .1.3.6.1.2.1
view   systemonly  included  .1.3.6.1.4.1

win10开启

管理员打开 PowerShell

Get-WindowsCapability -Online -Name "SNMP*"

Add-WindowsCapability -Online -Name "SNMP.Client~~~~0.0.1.0"

Add-WindowsCapability -Online -Name "WMI-SNMP-Provider.Client~~~~0.0.1.0"

win7 开启

dism /online /enable-feature /featurename:SNMP   #//安装snmp

读取信息

windows


snmpwalk -c ruser -v 2c   192.168.11.136 1.3.6.1.2.1.2.2.1.6

pc台账自动程序

  • 变成系统服务
  • 读取配置文件
  • 下载和执行文件

map 记录数据 （定义json结构）
读取json文件
port 提交数据
线程调用
